presentsCAMPBELL |
...

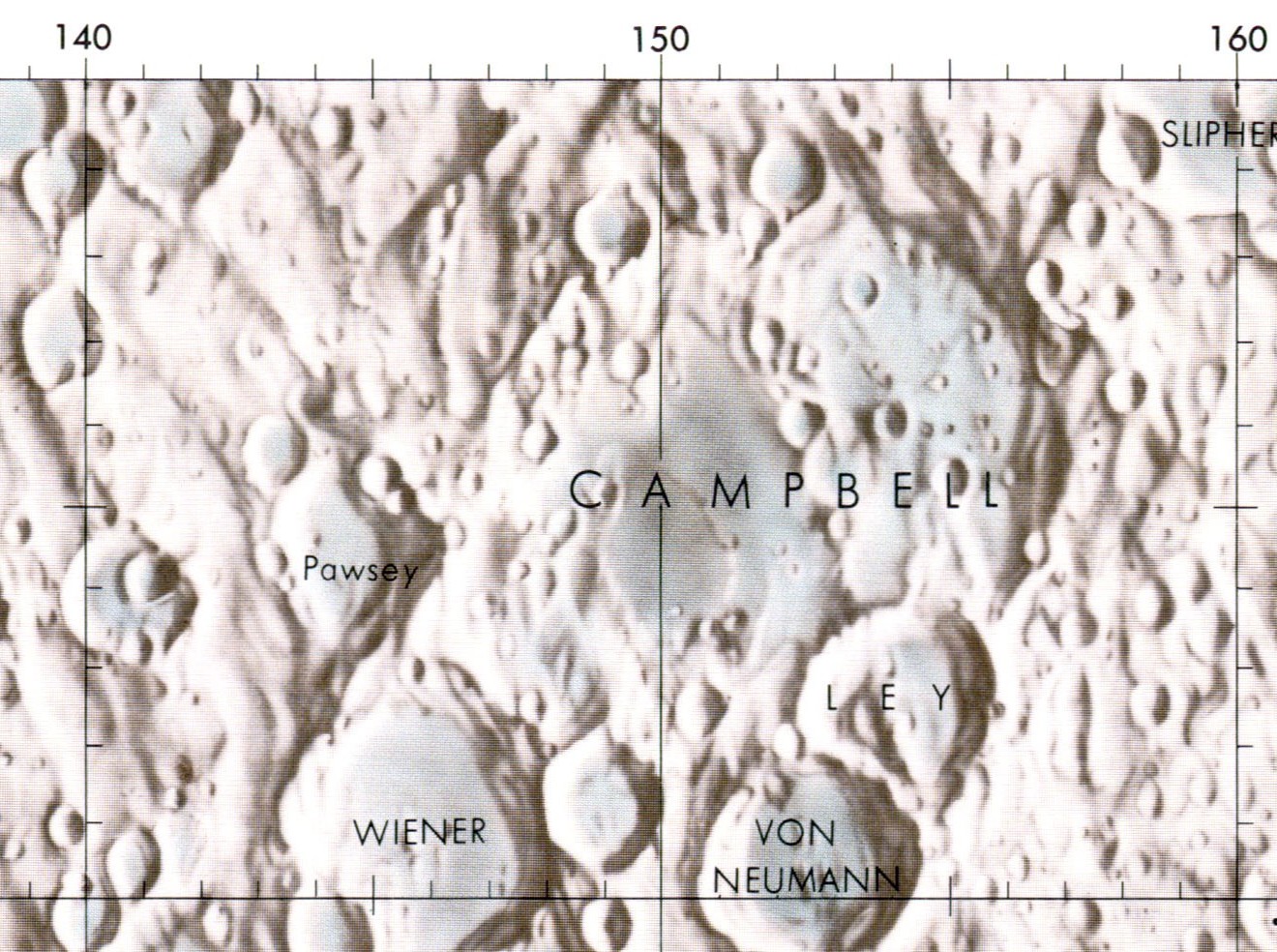

Left. Ridge Section 86; Right: Cropped 1200 dpi USGS color chart of Section 86
Larger version of Region
USGS Chart 4050N-140160
Lunascan Quad of Sections 086, 087 096, 097
LRO Wide Angle Camera 31 in pdf
Campbell is a large, 219 km, lunar crater located in the northern hemisphere on the lunar Far Side. If Campbell were located on the near side of the Moon as seen from Earth, it would form one of the largest visible craters, being slightly larger than Schickard. To the southwest are Wiener and Pawsey. To the south is Von Neuman and Ley, and SE is Appleton. Campbell has been heavily worn and eroded by a history of impacts, leaving a circular rim that is an irregular ring of ridges and peaks. Multiple small craters lie along the rim and the inner wall, as well as across the interior floor. The most notable of these are Campbell X along the northeast inner rim and Campbell N near the southern inner wall. Much of the inner floor is covered by a multitude of lesser impacts; the exception being a wide patch of the floor that has been resurfaced by basaltic lava. This area has a lower albedo than its surroundings, thus appearing dark. It stretches from the center of Campbell towards the western rim, and has an irregular perimeter. There is an unusual crater lying to the south of Campbell and to the west of Von Neumann. This is formed by two or more overlapping craters, the most recent being Wiener F, a nearly hexagonal formation with a rugged interior. (Credit: Most of the information used in the section feature descriptions was obtained from wikipedia.org. Section 86 and this directory was created by Fran Ridge and Ned Haskin of The Lunascan Project).
USEFUL TOOLS:
![Lunar Farside Chart [300 dpi] (NASA/LPI)](http://www.lpi.usra.edu/resources/mapcatalog/LMP/lmp2/300dpi.jpg){kind=link}
![Farside Image Composite [1600 dpi] (NASA/LRO)](http://www.nasa.gov/images/content/527006main_farside.1600.jpg){kind=link}
